Why install a Multi Split System Air Conditioner
We have answered your most frequently asked questions about Multi Split System Air Conditioners, including…
- How do they work?
- When would you install one?
- Multi-Split VS ducted reverse cycle air conditioner
- 1 Multi-Split VS multiple split systems
How do Multi Head Split Systems work?
Multi Head Split Systems work the same as other wall-hung Split Systems with 1 major difference; they use the same outdoor compressor unit.
The indoor units can be:
- Regular wall mounted split system heads
- Slimline units which are hidden in bulkheads, so the only thing you see is a sleek horizontal grille

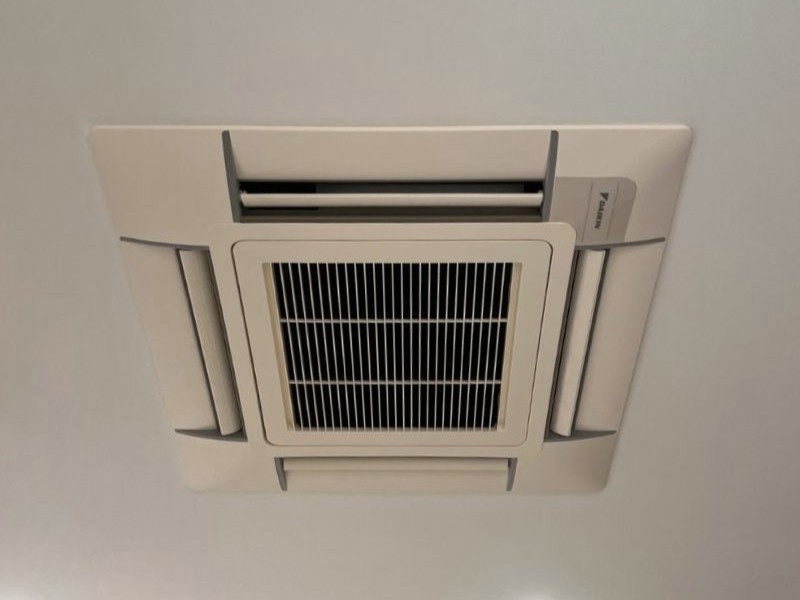

- Ceiling cassettes which disperse the air multiple directions
- Floor console (think space heater but an aircon)
You can also mix and match. Our above photos show one of our townhouse installs which had 8 indoor units of various styles connected to 2 outdoor units.
The outdoor units will run multiple indoor units. What size unit depends on how many KW you need inside.
For example, if 2 rooms need 2.5kw air cons and 1 room needs a 5kw, that’s 2.5 x 2 + 5 = 10kw. So you will need an outdoor unit which can handle at least 10kw.
Different brands and models can handle different KW and number of heads connected.
This usually ranges from 3-5 heads ranging from 7.5-12kw.
When would you install one?
We generally install Multi Split System air conditioners in dwellings where the is no roof space for a ducted system, such as townhouses, units and ground floors of double story houses.
The reason being is cost.
Twin or 3 head multi split system cost less than a ducted system, but once you are looking at 4 or more heads, the cost is the same as installing a ducted reverse cycle system. Except with the ducted system, you will have 7 or more outlets.
Government rebates
Currently Government rebates are available for switching from gas to electric. To qualify you must either:
- Remove a gas space heater and replace it with split system, or
- Remove gas ducted heating and replace it with ducted reverse cycle air conditioning.
Multi Split vs Ducted Reverse Cycle Air Conditioning
Multi Split System
PROS
- Great for townhouses and apartments which don’t have roof cavities
- Good option if only a couple of rooms need air conditioning
- Independent temperature control in each room
CONS
- Can be more expensive if you need 4 or more rooms air conditioned
- Hard to access locations can add extra materials and labour
Ducted Reverse Cycle System
PROS
- Best whole-house option
- Can add Zoning to save on running costs
- Central control of system
- Unobtrusive vents in ceiling
CONS
- Some features which come with Split Systems such as room temperature sensors are extra with some ducted systems
Multi Split vs multiple single Split Systems
Multi Split System
PROS
- Saves on space required for outdoor units
- Only 1 outdoor unit requires servicing & repairs
- It can be cheaper than installing multiple single split system
CONS
- If your outdoor unit breaks down, all of your indoor units are affected
Single Split System
PROS
- Flexible positioning throughout the house
- If one breaks down, it doesn’t affect the others
- The spread out costs, you can install them over a period of time
CONS
- Multiple outdoor units require servicing and repairs
- Can be more expensive if installing more than 1
